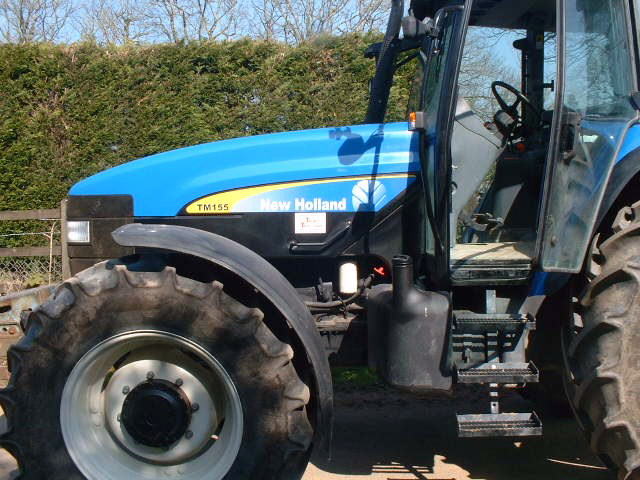

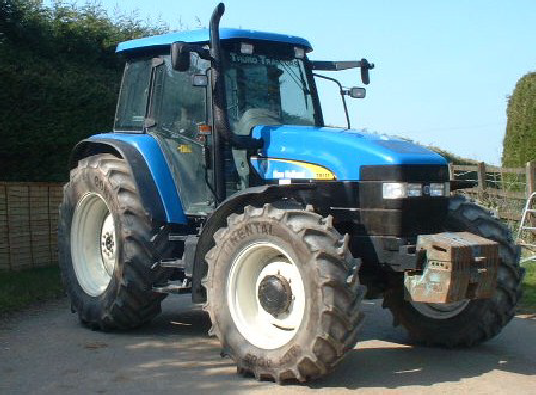

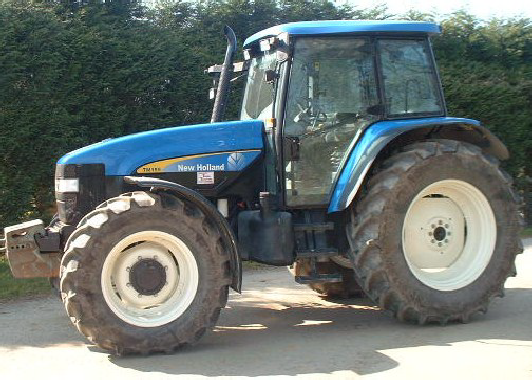

New Holland TM 155
SPECIFICATIONS
ENGINE:
New Holland 6 cylinder turbo charged & intercoold @ 155hp Producing very high torque.
TRANSMISSION:
Shuttle Command with 20 forward and 16 reverse gears, using conventional
dry plate clutch for a
very smooth engagement.
dry plate clutch for a
very smooth engagement.
HYDRAULICS:
Open centre with 53.1 lpm@ 190 Bar. 3 spool valves.

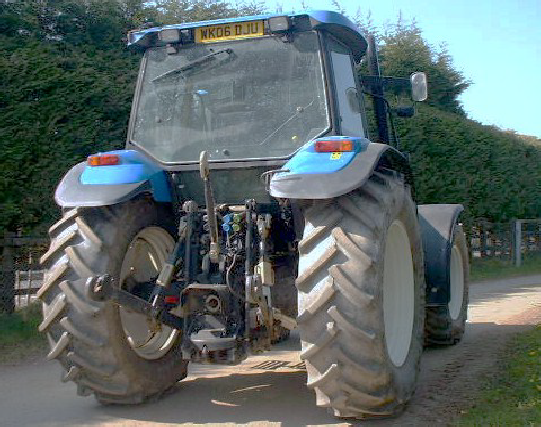

Max lift on rear linkage With one assist ram 5570kg
Max lift on rear linkage With one assist ram 5570kg
PTO:
3 speeds 540, 750 & 1000
Giving a massive 148hp on the PTO.
STATIC
DIMENSIONS:
Height to top of cab 2.78m
Length 4.61m
Wheelbase 2.72m
Ground clearance 0.27m
Turning radius 9.22m
Weight 5250kg
Tyres front 780 65 R28
Tyres rear 520 70 R38
( Tractor in Picture as
14.9 R28 18.4 R38 )
Giving a massive 148hp on the PTO.
STATIC
DIMENSIONS:
Height to top of cab 2.78m
Length 4.61m
Wheelbase 2.72m
Ground clearance 0.27m
Turning radius 9.22m
Weight 5250kg
Tyres front 780 65 R28
Tyres rear 520 70 R38
( Tractor in Picture as
14.9 R28 18.4 R38 )
